Section 12.6: Cylinders and Quadric Surfaces

A conic section is the curve you get by slicing a double cone with a plane.

Depending on the angle of the cut, you get one of four shapes:

• Circle — cut straight across (e.g. the rim of a coffee cup)
• Ellipse — cut at a slight tilt (e.g. planetary orbits)
• Parabola — cut parallel to the side of the cone (e.g. satellite dishes, headlight reflectors)
• Hyperbola — cut steep enough to hit both halves (e.g. cooling towers, sonic booms)

The general second-degree equation in two variables is:

If \(a\) and \(b\) are not both zero, this equation describes a conic section (possibly degenerate). We classify by comparing the squared terms:

We get these by completing the square on the general equation. The center is at \((h, k)\).

Step 1 — Which way does it open? Compare signs of the squared terms: \(+y^2\) and \(-x^2\). The positive variable (\(y\)) wins \(\rightarrow\) opens up and down.

Step 2 — Find intercepts. Zero out one variable at a time:

• Set \(x = 0\): \(y^2 = 1\) \(\rightarrow\) \(y = \pm 1\) \(\checkmark\)
• Set \(y = 0\): \(-9x^2 = 1\) \(\rightarrow\) no real solution \(\times\)

Step 3 — Find asymptotes. For large values, the constant \(1\) is negligible: \(y^2 \approx 9x^2\) \(\rightarrow\) \(y \approx \pm 3x\)

Step 1 — Which way does it open? Compare signs: \(+x^2\) and \(-y^2\). The positive variable (\(x\)) wins \(\rightarrow\) opens left and right.

Step 2 — Find intercepts. Zero out one variable at a time:

• Set \(y = 0\): \(x^2 = 1\) \(\rightarrow\) \(x = \pm 1\) \(\checkmark\)
• Set \(x = 0\): \(-4y^2 = 1\) \(\rightarrow\) no real solution \(\times\)

Step 3 — Find asymptotes. For large values, the constant \(1\) is negligible: \(x^2 \approx 4y^2\) \(\rightarrow\) \(y \approx \pm \tfrac{1}{2}x\)

Step 1 — Group by variable and factor. \((x^2 + 4x) - 4(y^2 - 6y) = 33\)

Step 2 — Complete the square. \((x^2 + 4x + 4) - 4(y^2 - 6y + 9) = 33 + 4 - 36\)

Step 3 — Simplify. \((x + 2)^2 - 4(y - 3)^2 = 1\)

Step 4 — Standard form. \(\frac{(x+2)^2}{1} - \frac{(y-3)^2}{(1/2)^2} = 1\) — Hyperbola centered at \((-2, 3)\), opening left and right.

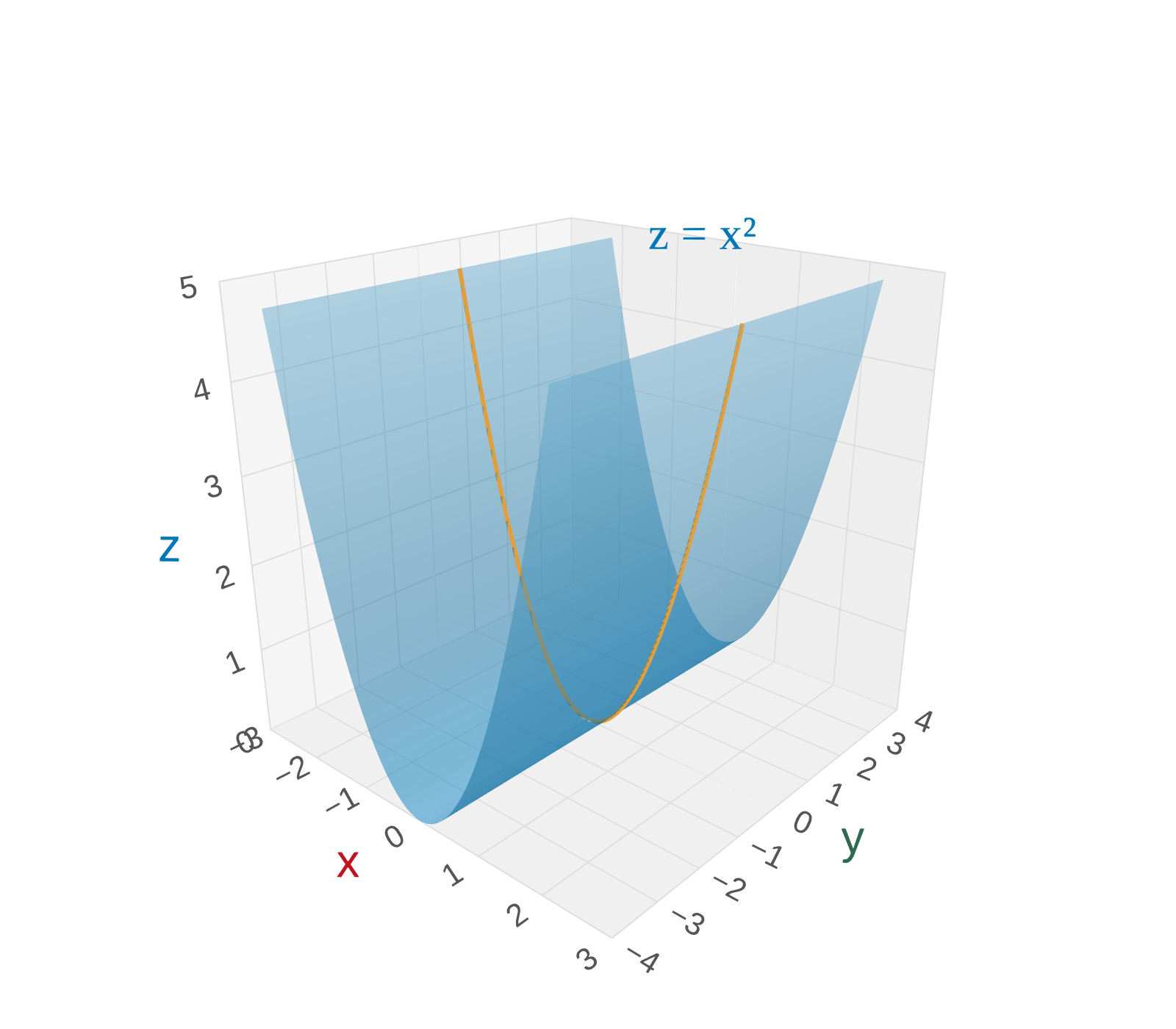

\(z = x^2\) — missing \(y\), so it extends along the \(y\)-axis: parabolic cylinder

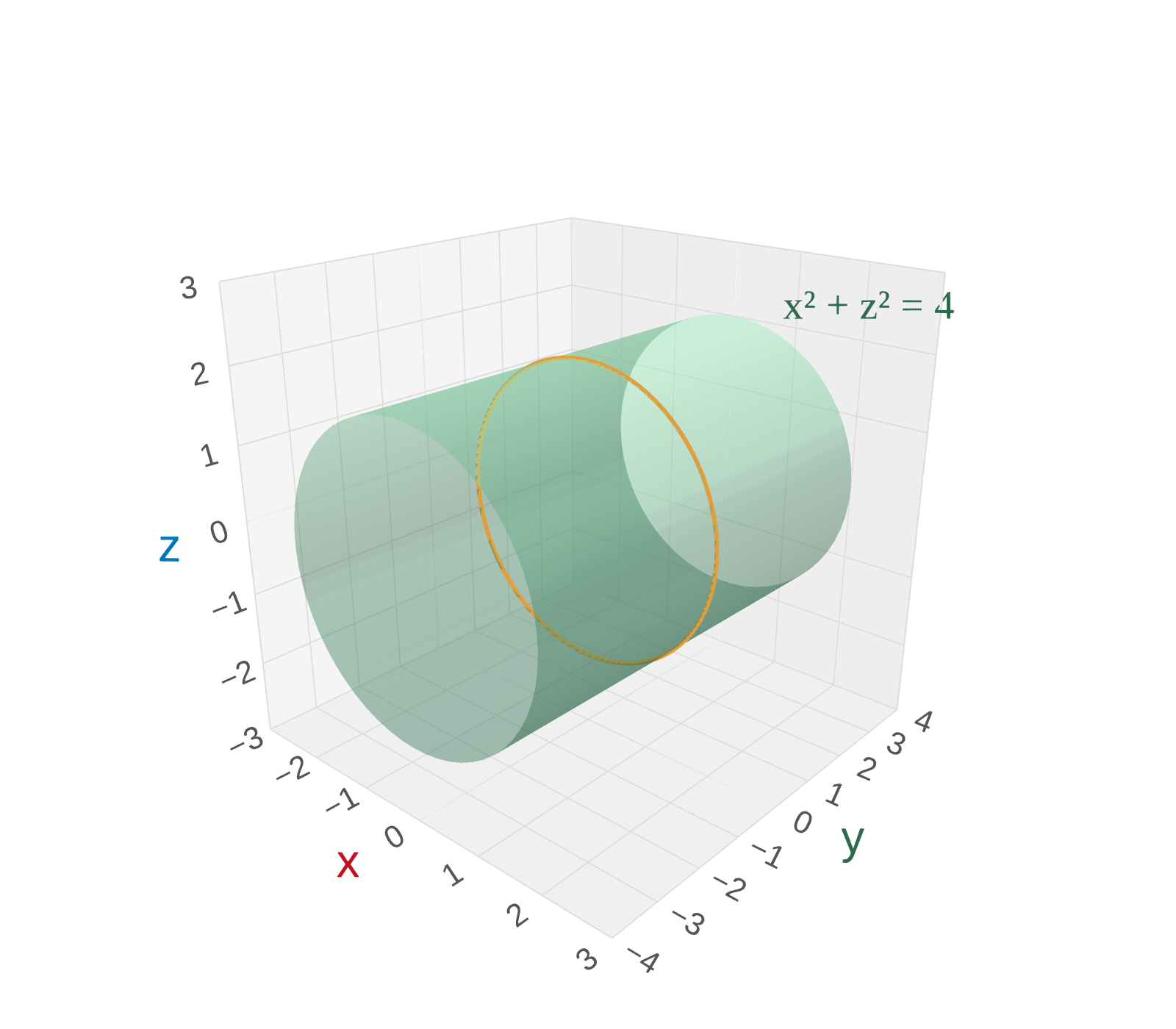

\(x^2 + z^2 = 4\) — missing \(y\), so it extends along the \(y\)-axis: circular cylinder

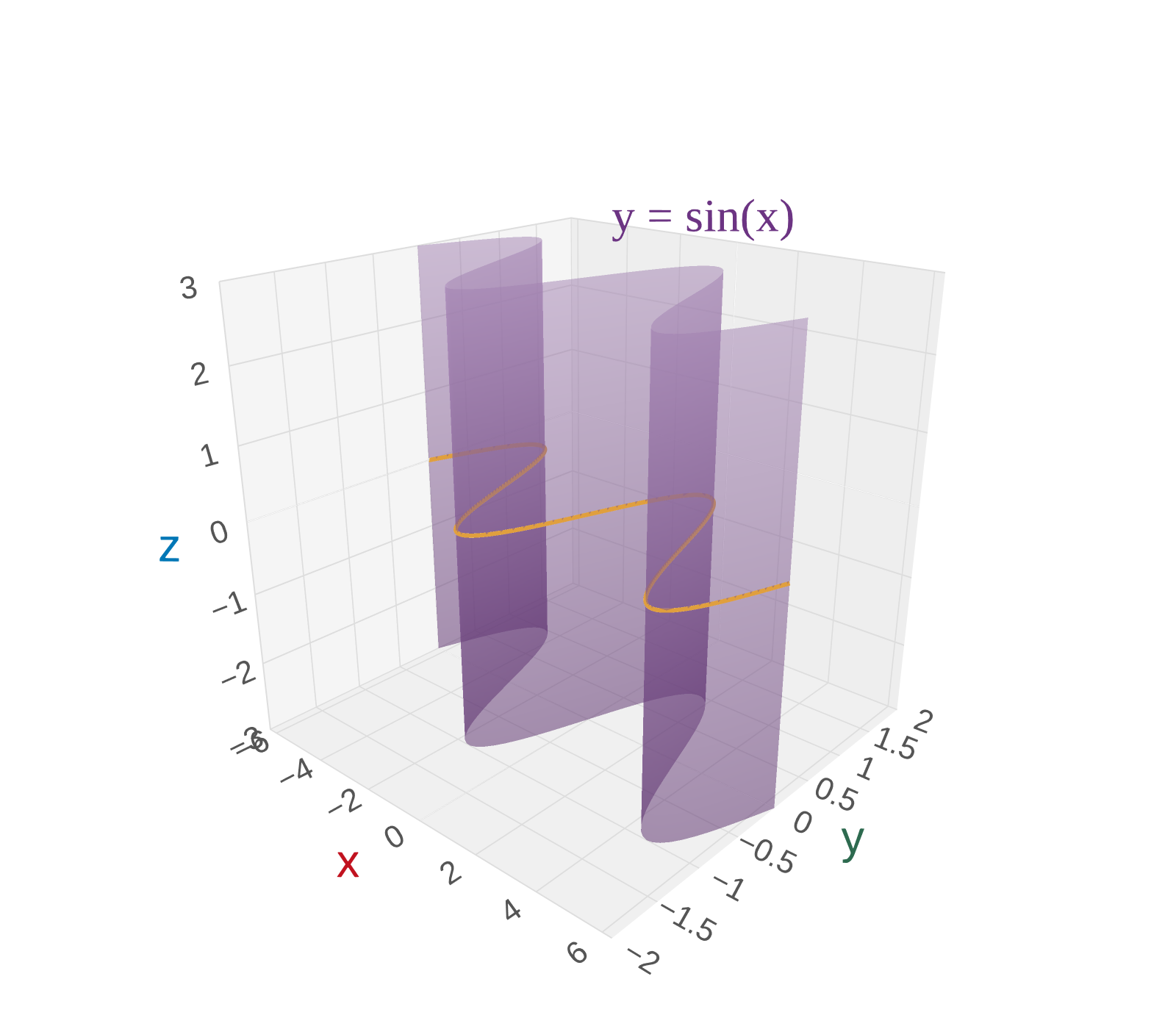

\(y = \sin(x)\) — missing \(z\), so it extends along the \(z\)-axis: wave cylinder

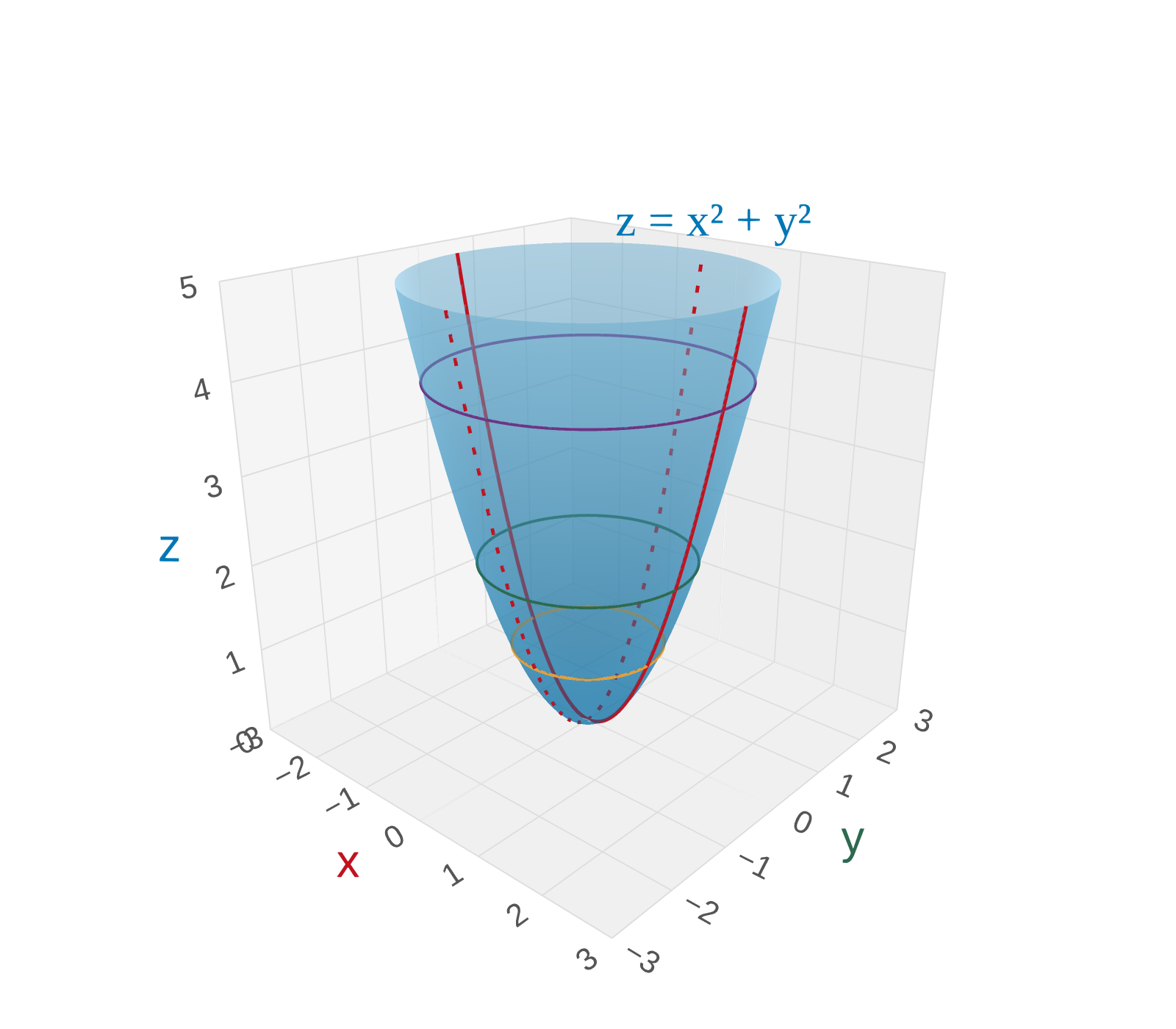

Rewrite as \(z = x^2 + y^2\). Now find traces:

Horizontal traces (\(z = k\)): \(x^2 + y^2 = k\)

• \(k > 0\): circle of radius \(\sqrt{k}\) — circles get larger as \(z\) increases
• \(k = 0\): just the origin
• \(k < 0\): empty (no surface below \(z = 0\))

Vertical traces (\(y = k\) or \(x = k\)): upward parabolas shifted up by \(k^2\)

We don't need every trace to sketch the surface. Pick the direction with the simplest shape — here the circles (\(z = k\)) — and imagine stacking them. Then one parabola in each vertical direction serves as a guide.

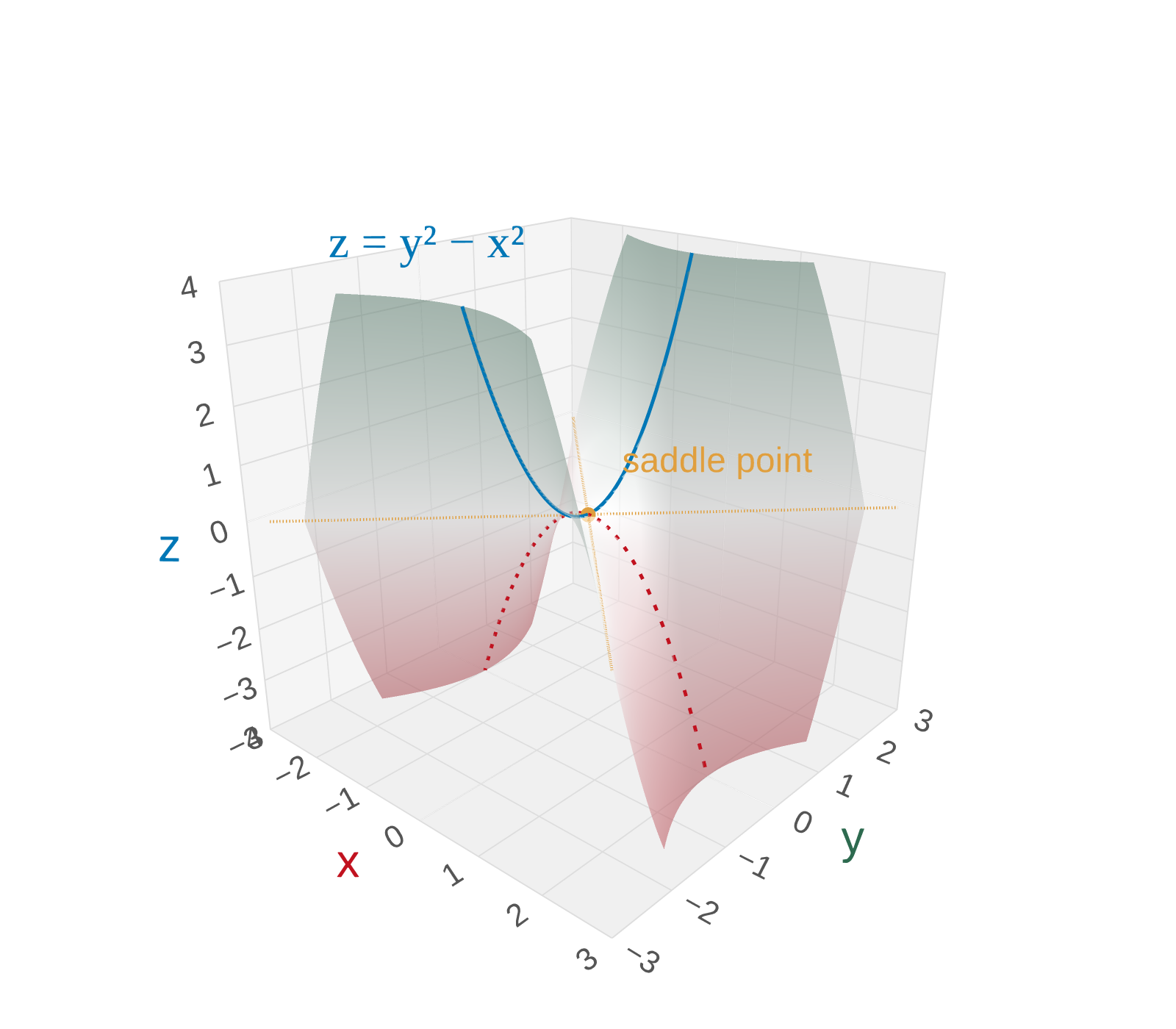

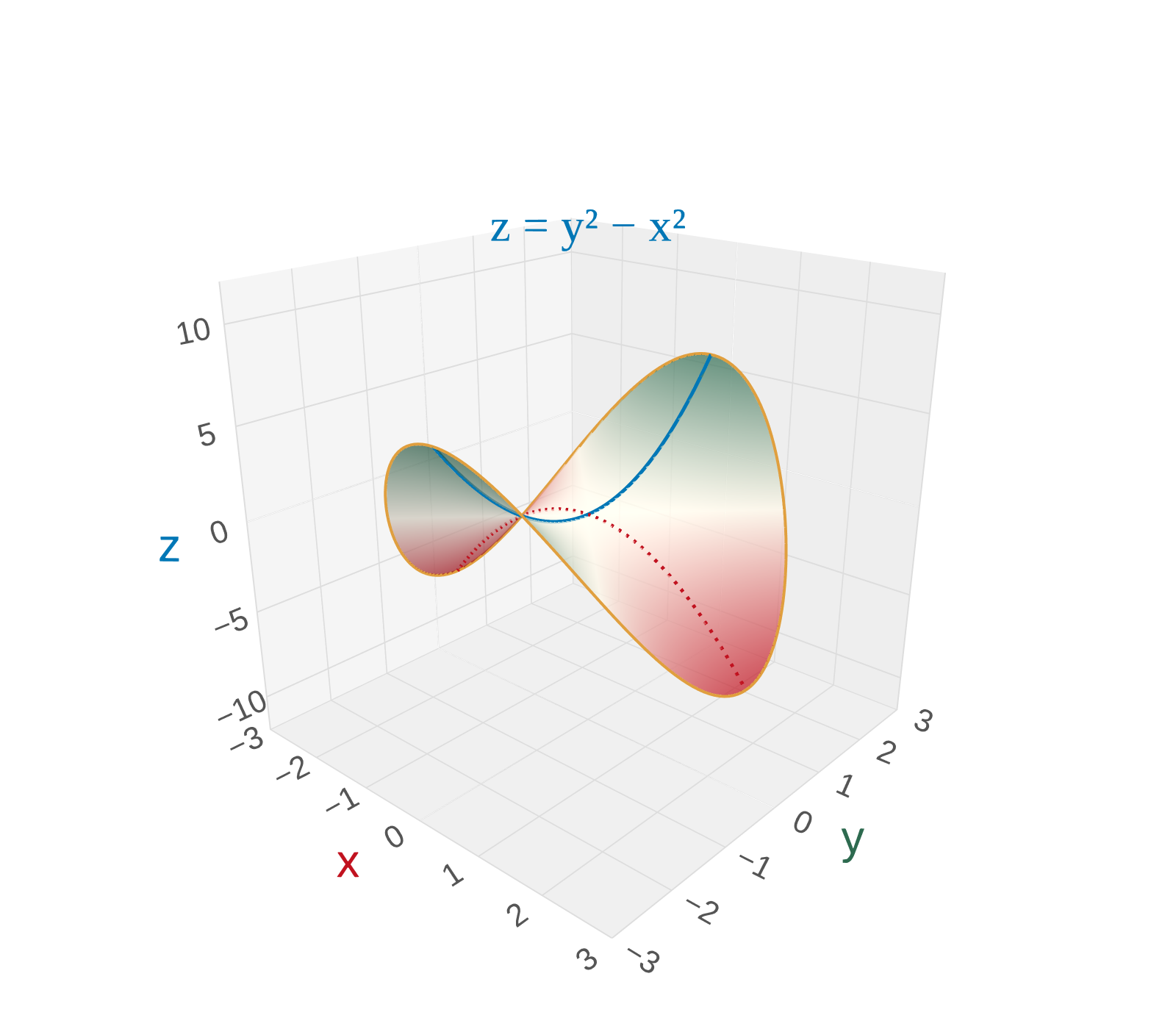

Rewrite as \(-x^2 + y^2 - z = 0\). Now find traces:

Horizontal traces (\(z = k\)): \(-x^2 + y^2 = k\)

• \(k > 0\): hyperbola opening along \(y\)
• \(k = 0\): lines \(y = \pm x\) (degenerate)
• \(k < 0\): hyperbola opening along \(x\)

Vertical traces:

• \(x = 0\): \(z = y^2\) — upward parabola
• \(y = 0\): \(z = -x^2\) — downward parabola

Stack the hyperbolas (which rotate 90\(^\circ\) as \(z\) crosses 0), then use the two parabolas as vertical guides — the surface curves up in \(y\) and down in \(x\).

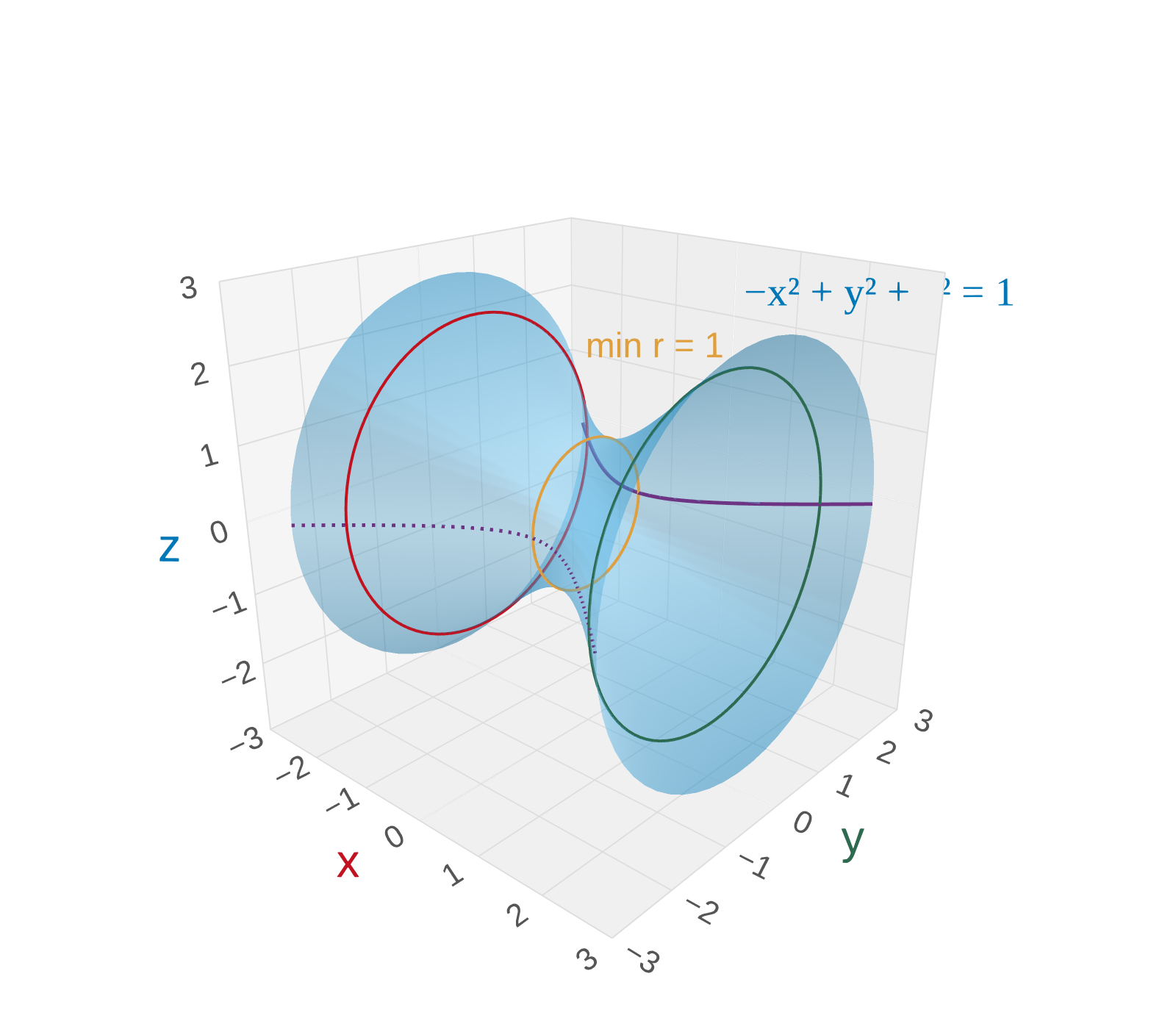

Find traces:

Simplest trace (\(x = k\)): \(y^2 + z^2 = 1 + k^2\) — circles of radius \(\sqrt{1 + k^2}\)

• Always \(\geq 1\), so circles exist for all \(k\) (no gaps!)
• Minimum radius \(1\) at \(x = 0\) (the "waist")

Vertical traces (\(z = 0\)): \(-x^2 + y^2 = 1\) — hyperbola opening along \(y\)

Stack the circles along the \(x\)-axis — they shrink to a minimum at \(x = 0\) and expand outward in both directions. The hyperbola in the \(xy\)-plane confirms the waist shape.

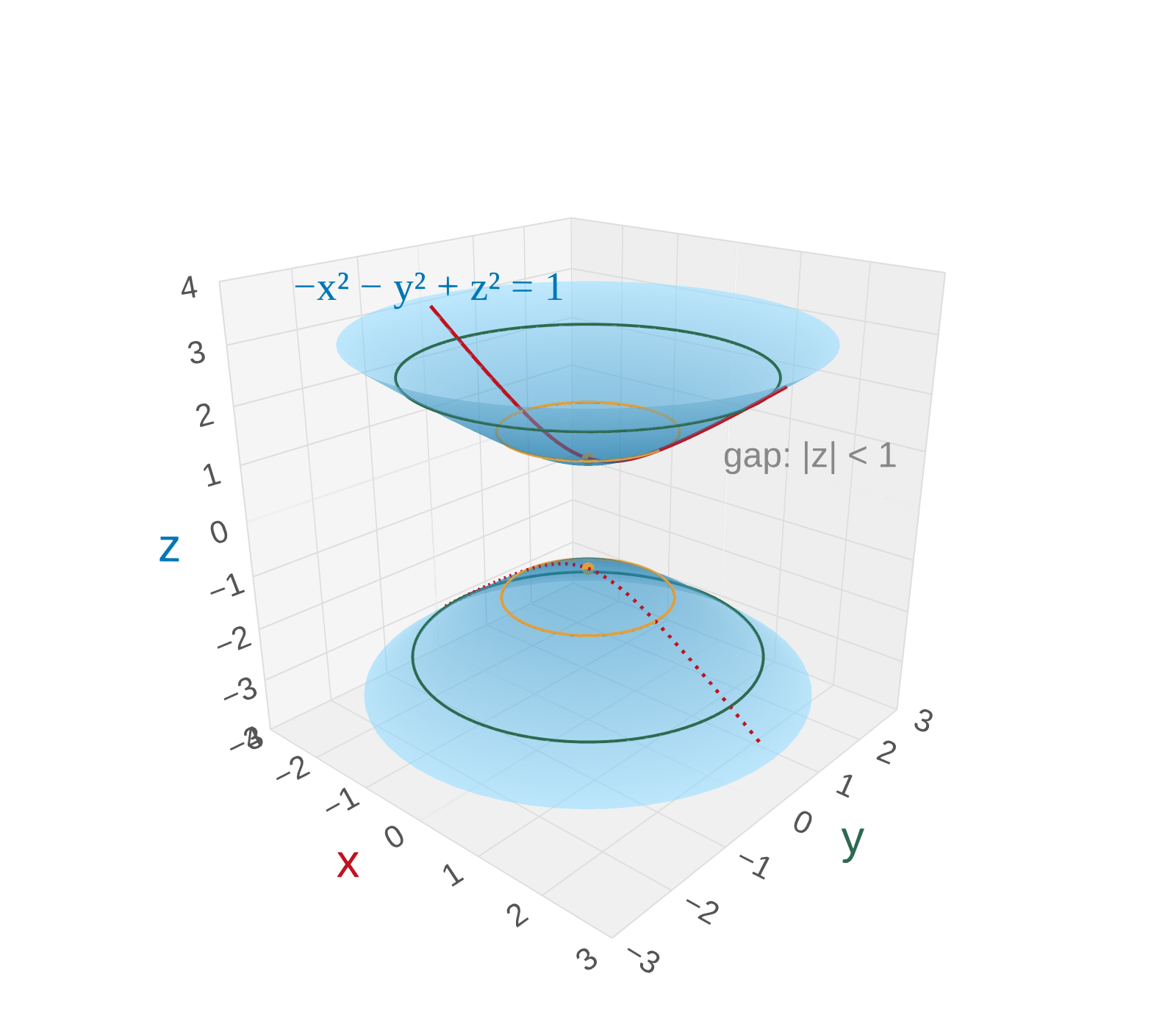

Find traces:

Horizontal traces (\(z = k\)): \(x^2 + y^2 = k^2 - 1\)

• \(|k| > 1\): circle of radius \(\sqrt{k^2 - 1}\)
• \(|k| = 1\): just a point (the vertex of each sheet)
• \(|k| < 1\): empty — no surface in the gap!

Vertical trace (\(y = 0\)): \(-x^2 + z^2 = 1\) — hyperbola opening along \(z\)

Stack circles above \(z = 1\) and below \(z = -1\), expanding outward. The gap \(|z| < 1\) means we get two separate sheets. The hyperbola in the \(xz\)-plane serves as a vertical guide.

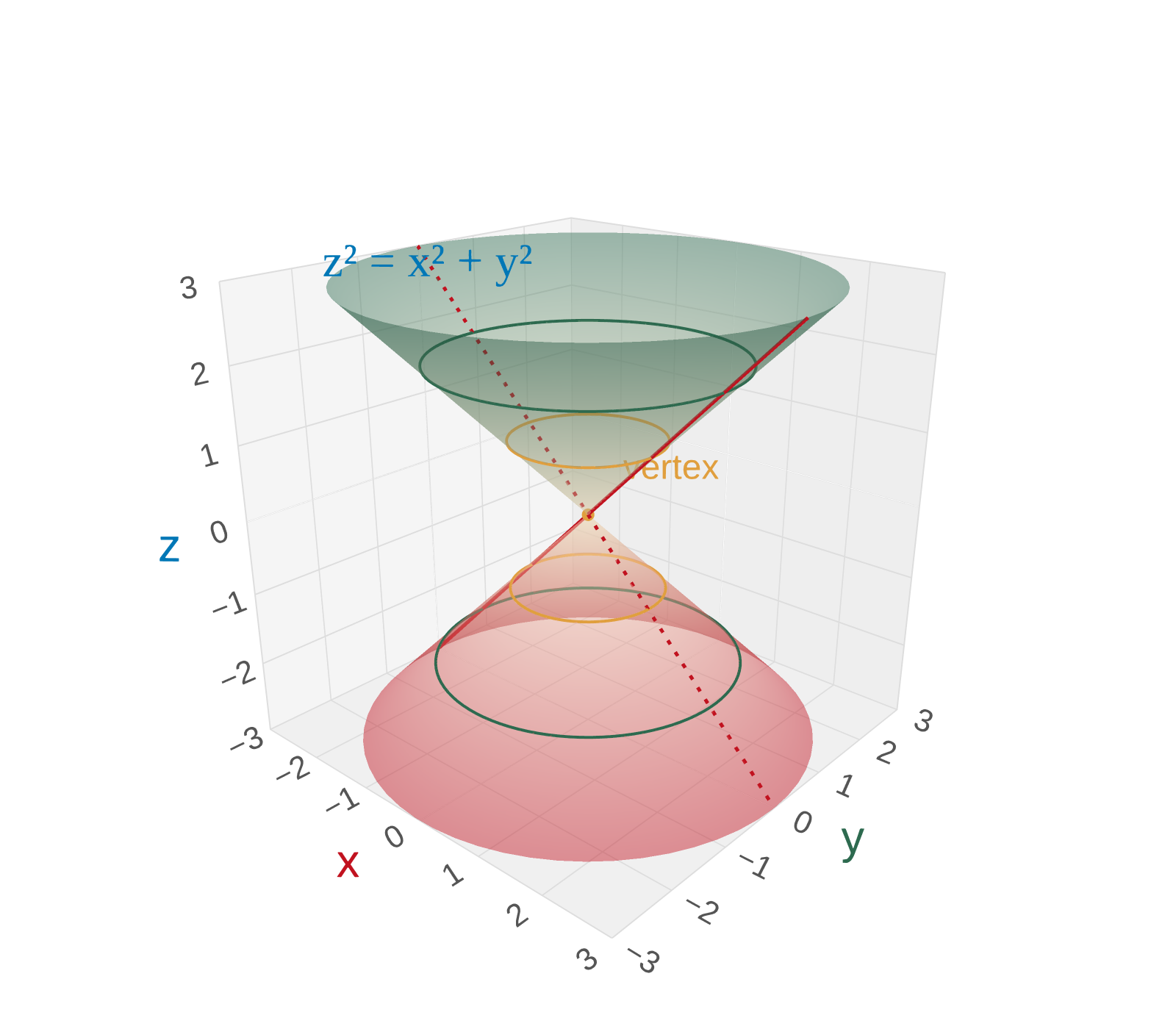

Find traces:

Horizontal traces (\(z = k\)): \(x^2 + y^2 = k^2\)

• \(k \neq 0\): circle of radius \(|k|\)
• \(k = 0\): just the origin (the vertex)

Vertical trace (\(y = 0\)): \(z^2 = x^2\) \(\rightarrow\) \(z = \pm x\) — two lines through the origin

Stack circles that grow linearly with \(|z|\). Unlike the paraboloid (circles grow like \(\sqrt{z}\)), these grow at a constant rate — straight sides. The two lines confirm it: no curvature, just a cone.
